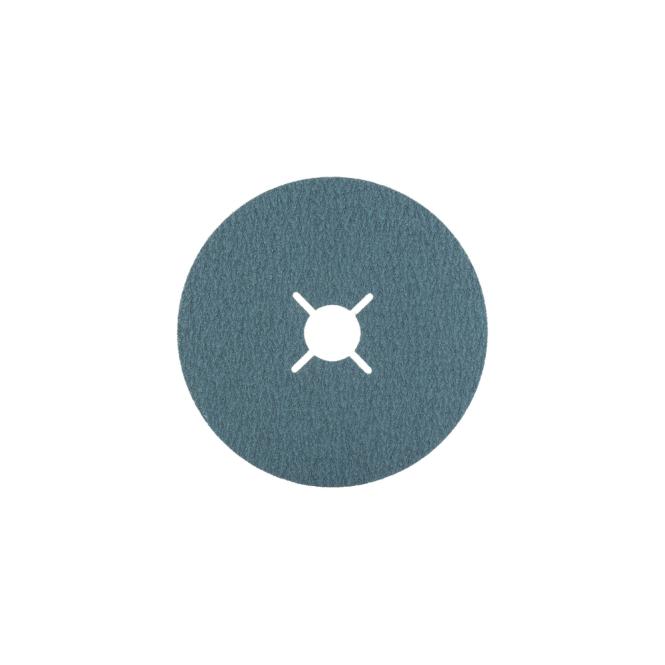

Würth Vulcanised fibre disc, zirconium corundum Topsize D125X22,23 mm
Würth

Würth Vulcanised fibre disc, zirconium corundum Topsize D125X22,23 mm

FBRDISC-ZC-G120-D125X22MM | Details see Product Description

Product number: KP1243216
0,93 €/piece
Delivery time: 3-7 days
klickparts points
+1
From 300€ free shipping (except bulky goods)
Purchase on account possible
Trusted Shops Buyer Protection
Description
Würth - Vulcanised fibre discs, Topsize zirconia alumina - Tear-resistant, tough-elastic sanding disc

Description:

22 mm hole with cross slot



Carrier material made from vulcanised fibre


  • Grain size 16-50: 0.8 mm

  • Grain 60-120: 0.6 mm


Electrostatic dispersion


Consistent removal rates



Topsize coating (= specialised zirconia alumina with cooling multi-bonding and grinding fillers) and highly elastic fully synthetic resin bonding


  • Aggressive grinding performance

  • Cool grinding – no tarnishing of the workpiece

  • Long service life

  • Low noise levels

  • Effective self-sharpening effect of the grinding grain


Application:

For use on hand-held pneumatic or electric angle grinders with circumferential speed of up to 80 m/s in conjunction with a support plate



Edge and surface grinding on flat and curved components:


  • Grain size 16-40: Levelling welding seams, spot-welding points, brazing seams etc. Deburring work on sheet, cast and forged metal parts. Grinding off sprues

  • Grain size 40-80: Smoothing of butt welds, edge breakage work and bare grinding of metal sheets and other metal surfaces.

  • Grain size 40-120: Derusting, grinding off old paint layers, fine sanding in car repairs


Materials to be processed:


Corrosion resistant and highly heat-resistant steels (stainless steel), carbon steels, forged steel, non-ferrous metals, chrome and nickel alloys and grey cast iron



Notice:

General working and safety instructions


  • Only use fibre discs with approved, undamaged support plates

  • The diameter of the fibre disc must not be more than 15 mm greater than the diameter of the support plate

  • Plunge-cut grinding is not permitted

  • Always wear appropriate protective equipment, e.g. safety glasses, gloves, hearing protection, etc.

  • Store out of direct sunlight and away from heat sources. Do not store in damp environments or on the floor

  • Store in original packaging at 18-22°C and 45-60% relative air humidity


1 piece(s)

alternative labels:
Zirconium sanding discs, Fibre discs, sanding pads, ceramic sanding pads, Ali fibre discs, disc, fibre disc, grinding, fibre, ceramic
Technical specifications
Minimum Order Quantity 1
Bore diameter in mm (mm) 22,23
Max. rotation speed in 1/min (U/min, RPM) (1/min (U/min, RPM)) 12,250
Diameter in mm (mm) 125
Recommended rotation speed in 1/min (U/min, RPM) (1/min (U/min, RPM)) 7,500
Colour of disc Türkisblau
Adhesive base All-synthetic resin with grinding-active additives
Grid size 120
Backing material Vulcanised fibre
Material of abrasive medium Zirconium conrundum
Shipping weight (kg) 0.10
