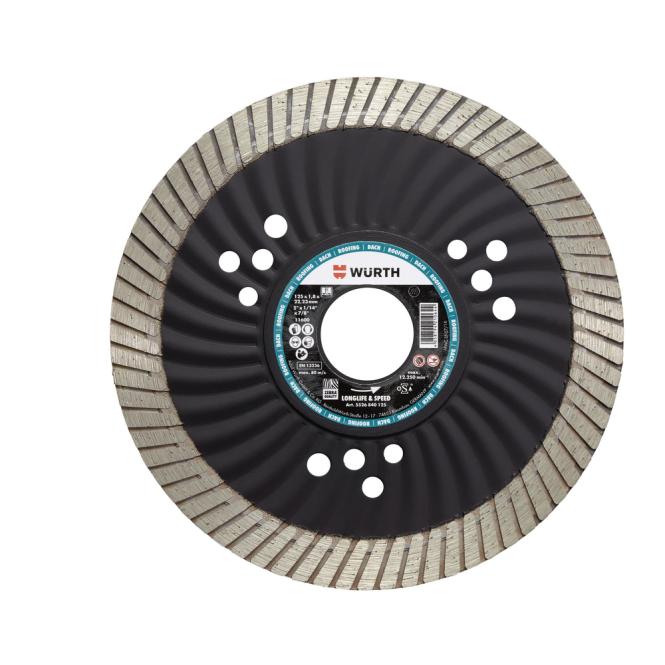

Würth Diamond cutting disc LS roof D125 mm
Würth

Würth Diamond cutting disc LS roof D125 mm

CUTDISC-DIA-LS-ROOF-BR22,23-D125MM | Details see Product Description

Product number: KP1155086
65,69 €/piece
Delivery time: 3-7 days
klickparts points
+66
From 300€ free shipping (except bulky goods)
Purchase on account possible
Trusted Shops Buyer Protection
Description
Würth - Diamond cutting disc - Super-thin diamond cutting disc with extremely high ease of cutting, very long service life and especially wide range of applications specially developed for the roofing trade.

Description:

Optimal cutting quality


The extra-thin, finely toothed closed cutting edge facilitates absolutely precise, rapid cuts and cleanly cut edges.



Absolutely smooth running


Disc does not wobble or vibrate owing to corrugated carrier specially reinforced in the centre



Cutting without high application of force


The extremely thin segment focuses the cutting force very precisely.



Optimised cooling and reliable direction indication


Special cooling openings with an "arrow arrangement" provide additional cooling and serve as a captive running direction indicator.



Application:
  • Particularly suitable for soft/hard clay bricks, old concrete, concrete, exposed aggregate concrete, interlocking paving stones, concrete piping, marble, soft/hard granite, stoneware pipes, soft/hard clinker brick, soft/hard Poroton, concrete tiles/pan tiles, glazed and Frankfurt pan tiles

  • For dry and wet cutting


Notice:
  • Diamond cutting discs become blunt at excessively high rotation speeds and wear too rapidly at insufficient circumferential speeds

  • If ease of cutting is lost (indicated by heavy sparking), resharpen the disc in abrasive material, e.g. sandstone, with several cuts

  • Separate larger workpiece cross-sections into several sections (swing cut)

  • Work without applying pressure — the weight of the machine is sufficient. Increased pressure causes increased wear.

  • Diamond cutting discs are designed for straight cutting. Cutting curves deforms the blade and results in core cracks and segment tear-offs — risk of injury!

  • Despite the level of safety offered by the tool, always wear safety glasses and clothing while working

  • Observe the information on the label (max. rotation speed), the restrictions of use and the safety instructions

  • The direction arrow on the disc must match the machine's direction of rotation

  • Must not be used for lateral grinding

  • Use the appropriate protective hood

  • Clamping must be performed only by a trained specialist (do not use force, use clean clamping flanges of the same size, perform a test run)

  • If grinding tools are clamped wrongly or used incorrectly or are damaged, they represent a danger and may cause serious injury


1 piece(s)

alternative labels:
Cut, Cutting, Disc, diamond blades, builders blade, stone blade, Slit, construction, diamond, general, primus, xceed
Technical specifications
Minimum Order Quantity 1
Drill hole in mm (mm) 22,23
Max. rotation speed in 1/min (U/min, RPM) (1/min (U/min, RPM)) 13,300
Diameter in mm (mm) 125
Cutting speed (point system) 4 von 4 Punkten
Cut quality (point system) 4 von 4 Punkten
Segment height in mm (mm) 12
Segment thickness in mm (mm) 1,8
Segment connection Gesintert
Service life (points system) 4 of 4 points
Max. circumferential speed in m/s (m/s) 80
Versatility (points system) 4 of 4 points
Shipping weight (kg) 0.20
Media
pdf, 299kB
