Würth

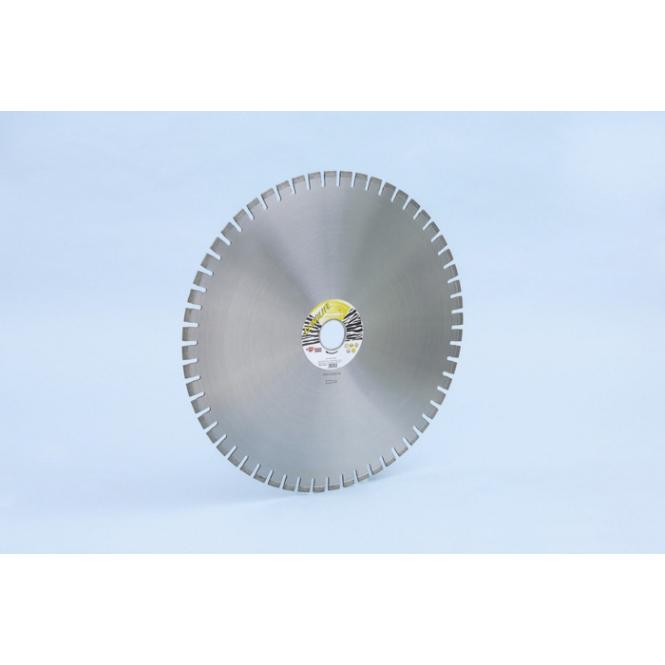

Würth Diamond cutting disc L construction segmented BAUMAT B60/55 625

CUTDISC-DIA-LL-WET-CNSTMAT-B60/5 | Details see Product Description

Product number: KP1155081
695,75 €/piece
Delivery time: 3-7 days
klickparts points
+696
From 300€ free shipping (except bulky goods)
Purchase on account possible
Trusted Shops Buyer Protection
Description
Würth - Diamond cutting disc, long-life, construction materials, abrasive - For wet cutting.

Description:

Universal mounting system with 4 driving holes



Application:

For stationary saws and bench saws


For wet cutting

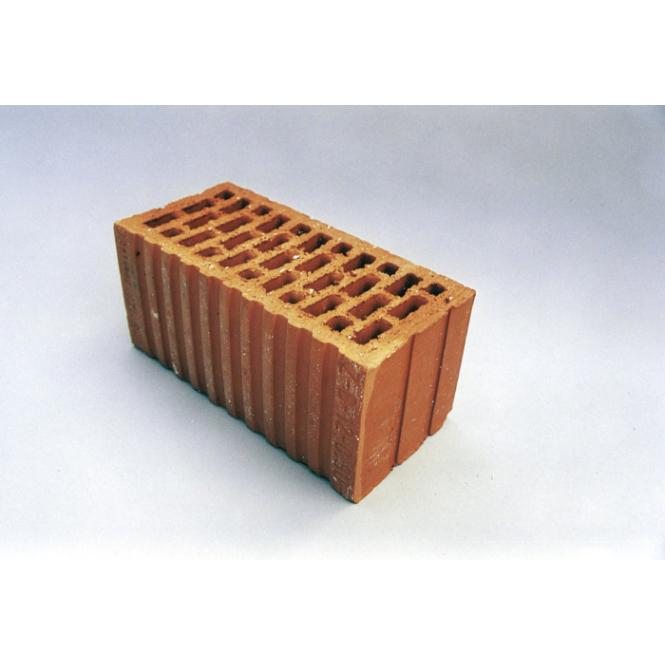

For concrete, plaster, mortar, soft sand-lime brick, soft clay brick and soft Poroton



Notice:
  • Diamond cutting discs become blunt at excessively high rotation speeds and wear too rapidly at insufficient peripheral surface speeds

  • If ease of cutting is lost (indicated by heavy sparking), resharpen the disc in abrasive material, e.g. sandstone, with several cuts

  • Cut larger workpiece cross-sections into several sections (swing cut)

  • Work without applying pressure – the weight of the machine is sufficient. Increased pressure causes increased wear.

  • Diamond cutting discs are designed for straight cutting. Cutting curves deforms the blade and results in core cracks and segment tear-offs – risk of injury!

  • Despite the level of safety offered by the tool, always wear safety glasses and clothing while working

  • Observe the information on the label (max. rotation speed), the restrictions of use and the safety instructions

  • The direction arrow on the disc must match the machine's direction of rotation

  • Must not be used for lateral grinding

  • Use the appropriate protective hood

  • Clamping must be performed only by a trained specialist (do not use force, use clean clamping flanges of the same size, perform a test run)

  • If grinding tools are clamped or used incorrectly or are damaged, they represent a danger and may cause serious injury


1 piece(s)

alternative labels:
Cut, Cutting, Disc, diamond blades, builders blade, stone blade, Slit, construction, diamond, general, primus, xceed
Technical specifications
Minimum Order Quantity 1
Drill hole in mm (mm) 60
Max. rotation speed in 1/min (U/min, RPM) (1/min (U/min, RPM)) 3,100
Diameter in mm (mm) 625
Product weight (per item) (kg) 8
Reducing-ring internal diameter in mm (mm) 55
Number of segments in Stück [PCS] (Stück [PCS]) 60
Segment height in mm (mm) 10
Segment thickness in mm (mm) 4,5
Segment connection Gelötet
Max. circumferential speed in m/s (m/s) 100
Shipping weight (kg) 8.10
