Würth Hydraulic cylinder set 22 T SET 22 T
Würth

Würth Hydraulic cylinder set 22 T SET 22 T

CYL-HYDRAULIC-SET 22 T | Details see Product Description

Product number: KP1194806
1.496,48 €/piece
Delivery time: 3-7 days
klickparts points
+1.497
From 300€ free shipping (except bulky goods)
Purchase on account possible
Trusted Shops Buyer Protection
Description

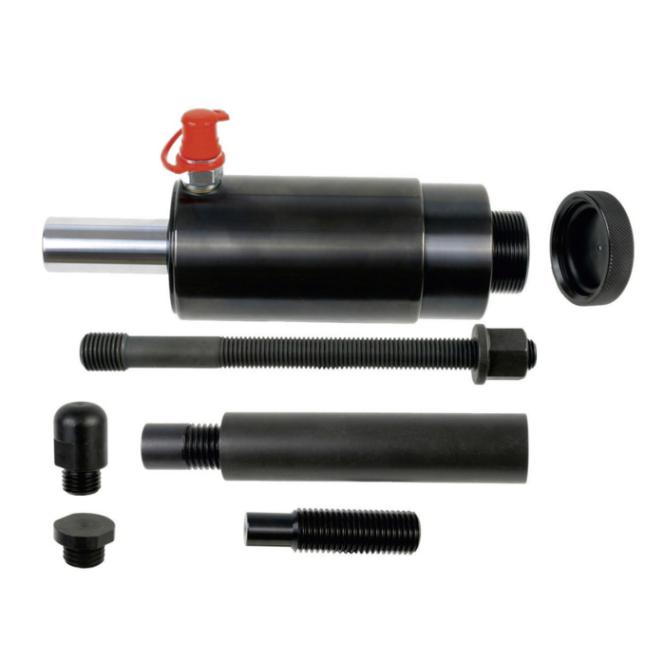

Würth - Hydraulic cylinder set - 7 pieces. A compact hydraulic unit with low intrinsic weight (4.80 kg) for pressing and dragging with a range of movement of 70 mm.

Description:
  • The special construction enables impact on the piston rods to increase breakaway torque when pressing, e.g. for corroded and bonded components.

  • Puller and pressure spindle are mounted directly in the piston rod.

  • The working piston retracts automatically after pressure relief thanks to the spring force.


Scope of delivery:


  • 1 x hammer head M22 x 2.5 mm

  • 1 x pressure plate M24 x 3 mm

  • 1 x pressure piece with thread, short M24 x 3 x 92 mm

  • 1 x pressure piece with thread, long M24 x 3 x 132 mm

  • 1 x pressure ram with thread M24×3 mm

  • 1 x feed shaft M18/22 x 2.5 x 250 mm

  • 1 x collar nut M18 x 2.5 mm


1 piece(s)
Technical specifications
Minimum Order Quantity 1
Max. loading weight in t (t) 22
Stroke length in mm (mm) 70
Spindle-thread diameter in mm (mm) 22
Shipping weight (kg) 7.30
1.496,48 €/piece
Delivery time: 3-7 days
klickparts points
+1.497
