Würth

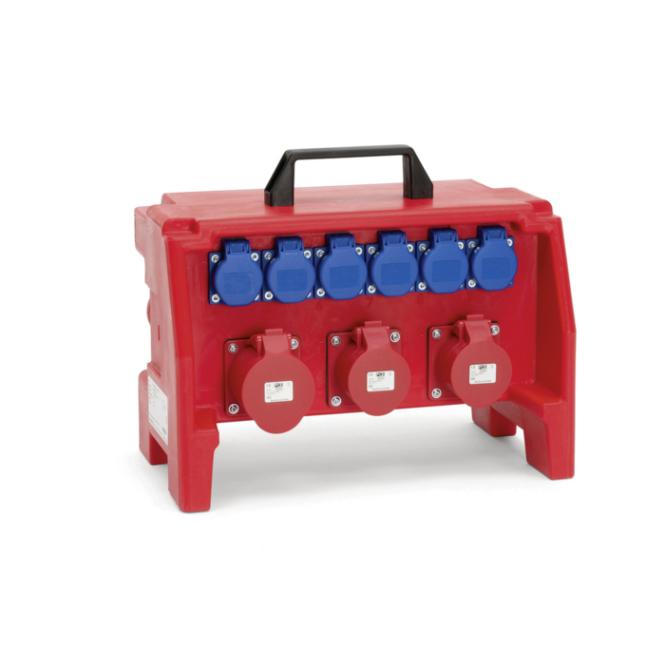

Würth Plastic socket distributor WSDV+ WSDV2PLUS

PWRDISTR-PLA-WSDV2PLUS | Details see Product Description

Product number: KP1216404
1.119,94 €/piece
Delivery time: 3-7 days
klickparts points
+1.120
From 300€ free shipping (except bulky goods)
Purchase on account possible
Trusted Shops Buyer Protection
Description
Würth - Plastic socket distributor WSDV+ - Complies with new DIN VDE 0100 Part 704:2018-10 specifications

Description:
  • FI and LS switches are securely protected behind a lockable built-in window

  • Installation sockets are securely protected thanks to projecting housing

  • Impact and weather-resistant plastic housing

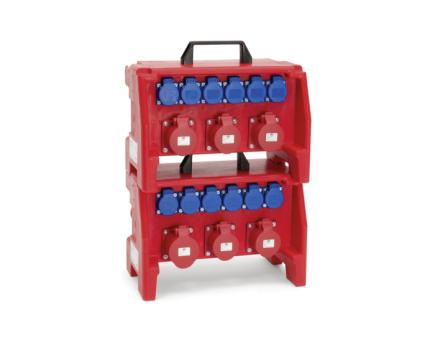

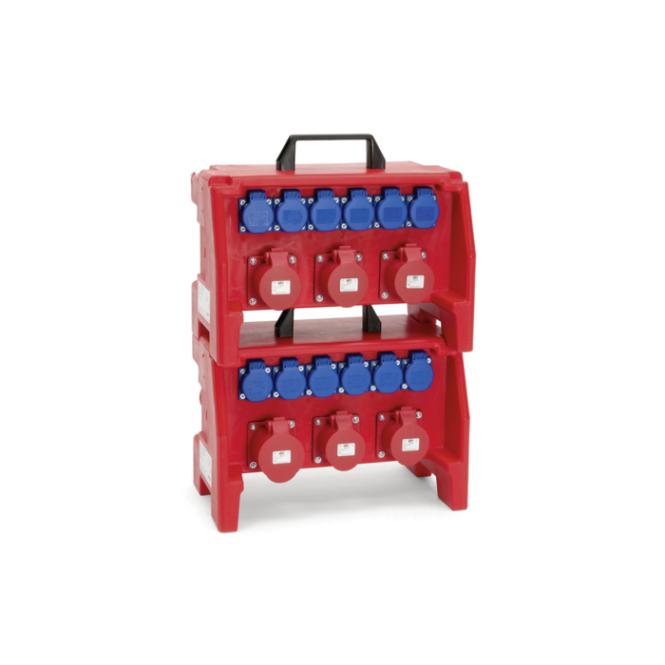

  • Stackable to save space

  • Made in Germany


Application:
  • For indoor and outdoor use

  • Portable socket distributors as a special supply point in accordance with DIN VDE 0100 Part 704:2018-10 for connecting AC and three-phase power consumers on construction sites downstream of a connection distributor cabinet or a distributor/end distributor cabinet.


Notice:

Before commissioning, the user must check that there is no type A or type F residual current device connected upstream.



When used in combination with temporary power panels upstream, types without a residual current device (RCD) can be used. The residual current devices installed in the supplying temporary power panel then ensure protection against residual currents.



1 piece(s)
Technical specifications
Minimum Order Quantity 1
Connected load in kVA (kVA) 22
Output 6 Schutzkontaktsteckdosen 16 A, 250 V
Width in mm (mm) 238
Input CEE 32 A, 5P, 400 V
Colour Rot
Height in mm (mm) 322
Length in mm (mm) 396
Nominal voltage in V (AC) (V (AC)) 400
Main fuse 1 FI 40/0,03 A, Typ B (allstrom-sensitiv)
IP protection class IP 44
Max. temperature conditions in °C (°C) 35
Min. temperature conditions in °C (°C) -25
Type description WSDV2+
Material KST
Shipping weight (kg) 6
